We have successively produced a series of products including plastic one-time molded inspection wells for municipal and construction area drainage, resin manhole covers, ductile iron manhole covers, hollow wall wrapped pipe shafts, HDPE double-wall corrugated pipes, HDPE steel belt reinforced corrugated pipes, plastic-steel wrapped pipes, plastic septic tanks, rainwater collection, etc. The company produces Mpp power pipes, PE water pipes, PE gas pipes and fittings, and undertakes the construction of underground pipeline projects.
‹
›
‹
›

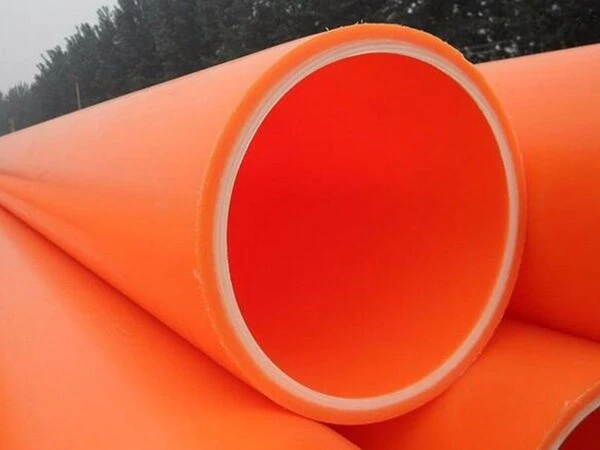

MPP power pipe weight table
Implementation standard: DLA802.7-2010 Color: orange
Appearance: The inner and outer surfaces of the pipe should be clean and smooth, without bubbles, obvious scratches, dents, impurities, and uneven color defects.
Wall thickness meter weight model | 5mm | 6mm | 7mm | 8mm | 10mm | 12mm | 15mm |
φ90 | 1. 27 | 1.51 | 1.74 | 1.96 | 2.4 | 2.8 | 3.36 |
φ100 | 1.42 | 1.7 | 1.95 | 2. 20 | 2.68 | 3.15 | 3.81 |
φ110 | 1.57 | 1.86 | 2.15 | 2.44 | 3 | 3.51 | 4.25 |
φ125 | 1.79 | 2.13 | 2.46 | 2.8 | 3.43 | 4.05 | 4.93 |
φ140 | 2.02 | 2.4 | 2.78 | 3.15 | 3.88 | 4.58 | 5.6 |
φ160 | 2.32 | 2.76 | 3.2 | 3.63 | 4.48 | 5.3 | 6.5 |
φ175 | 2.55 | 3.03 | 3.51 | 3.99 | 4.93 | 5.84 | 7.16 |
φ180 | 2.62 | 3.12 | 3.62 | 4.11 | 5.07 | 6.02 | 7.4 |
φ200 | 2.91 | 3.48 | 1.03 | 4.58 | 5.67 | 6.73 | 8.3 |
φ225 | 3.3 | 3.92 | 4.55 | 5.18 | 6.42 | 7.63 | 9.4 |
φ250 | 3.66 | 4.37 | 5.08 | 5.78 | 7.16 | 8.52 | 10.52 |
